DTL-F

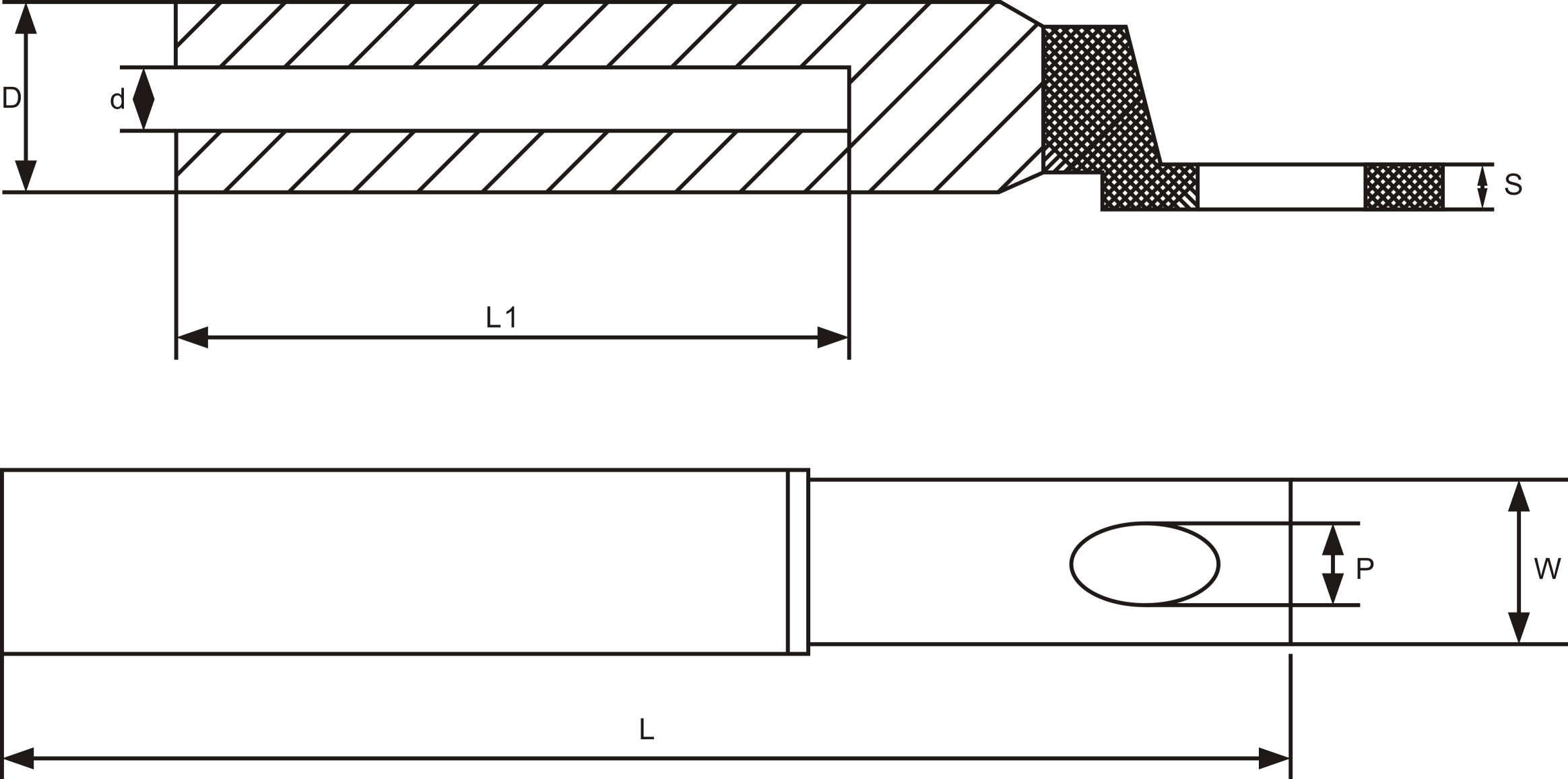

| نوع A (mm) | P±0.3 | D±0.5 | d±0.3 | L±3 | L1±0.3 | W±0.5 | S±0.3 |
| DTL-F-16 | Φ8 | Φ16 | Φ5.5 | 87 | 43 | 14 | 4 |
| DTL-F-25 | Φ8 | Φ16 | Φ7 | 87 | 43 | 14 | 4 |
| DTL-F-35 | Φ8 | Φ16 | Φ8.5 | 87 | 43 | 14 | 4 |
| DTL-F-50 | Φ10 | Φ20 | Φ10 | 100 | 50 | 17 | 5 |
| DTL-F-70 | Φ10 | Φ20 | Φ11.5 | 100 | 50 | 17 | 5 |
| DTL-F-95 | Φ10 | Φ20 | Φ13.5 | 100 | 50 | 17 | 5 |
| DTL-F-120 | Φ12 | Φ25 | Φ15 | 120 | 63 | 21 | 6.2 |
| DTL-F-150 | Φ12 | Φ25 | Φ16.5 | 120 | 63 | 21 | 6.2 |
| DTL-F-185 | Φ12 | Φ32 | Φ18.5 | 122 | 60 | 25 | 7.2 |
| DTL-F-240 | Φ12 | Φ32 | Φ20 | 122 | 60 | 25 | 7.2 |
| DTL-F-300 | Φ12 | Φ34 | Φ23.5 | 145 | 65 | 30 | 8 |
| DTL-F-400 | Φ12 | Φ40 | Φ26 | 150 | 70 | 32 | 8 |
| DTL-F-500 | Φ12 | Φ40 | Φ30 | 150 | 70 | 32 | 8 |
